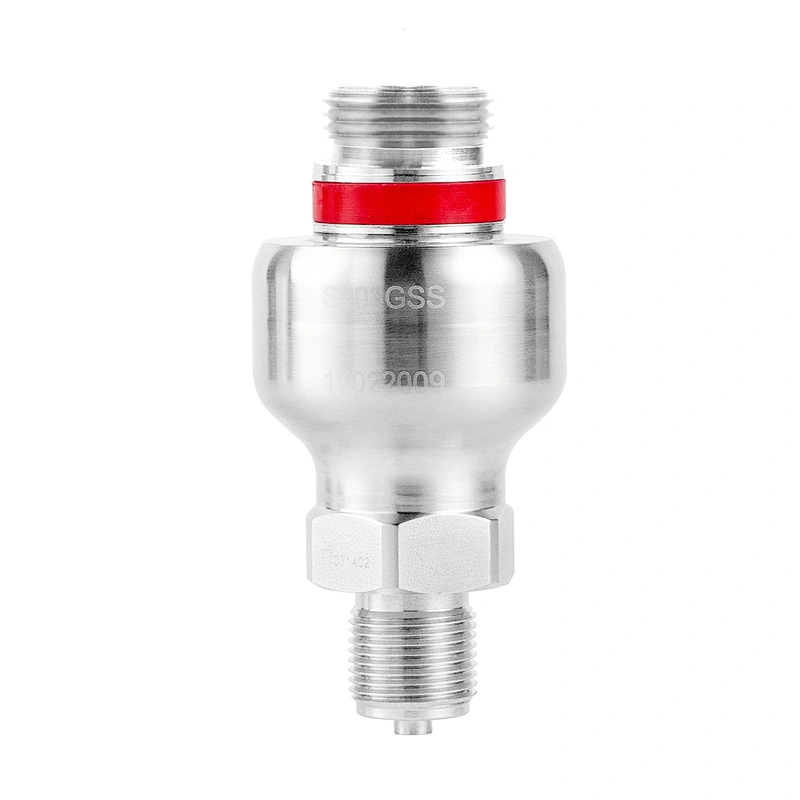

Monosilicon Pressure Sensor

The core sensor is high precision monosilicon technology with SP38T, it can be built-in static pressure and temperature compensation, which maximum improves the static pressure and temperature performance of the sensor. With high overload and high static pressure, high static pressure up to 16MPa even though the nominal pressure range is 6kPa. SP38T is suitable for all kinds of harsh environment, the working temperature is -40~120°C.


Features

• Power supply: 5V(typ),12V(max)
• Output voltage: 60～140mV(at 5V)
• Long term drift: <±0.05% F.S./year
• Diaphragm material: SUS316L/ hastelloy C
• Mechanical connection for housing: M27×2(M), 2 3/16-16 UNS, M56×1.5(M)
• Power supply: 5V(typ),12V(max)
• Working temperature: -40℃~ +120℃
• Temperature effect on zero: ±0.05% F.S./℃
• Temperature effect on span: - 0.2±0.05% F.S./℃
• Temperature hysteresis: <±0.05% F.S.
• Pressure hysteresis: <±0.025% F.S.
• Static pressure effect: <±0.1% /10MPa

Industry application

• Process control
• Environmental control
• Flow control
• Hydraulic and pneumatic equipment
