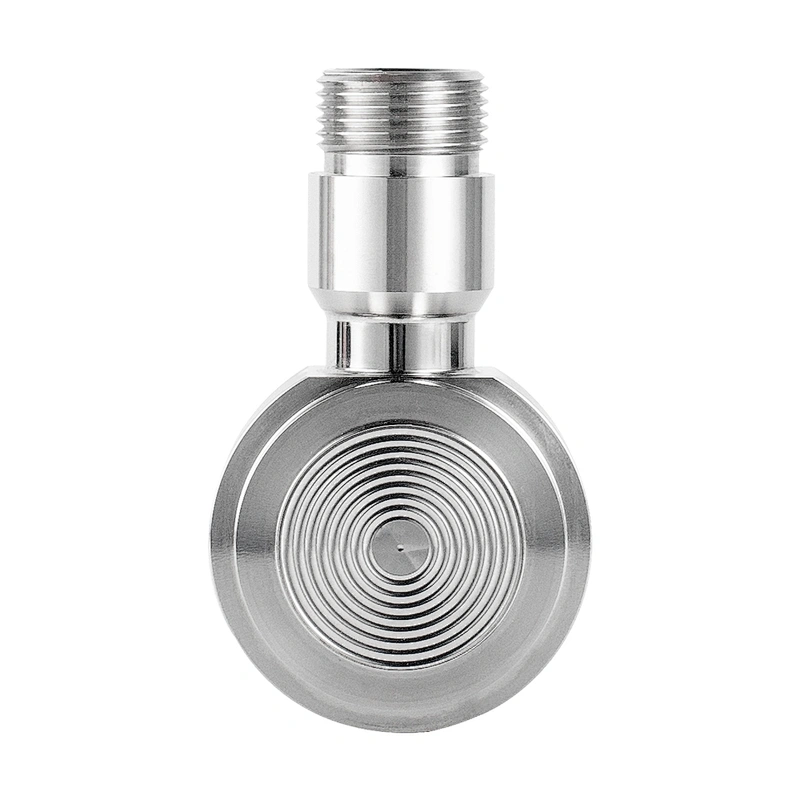

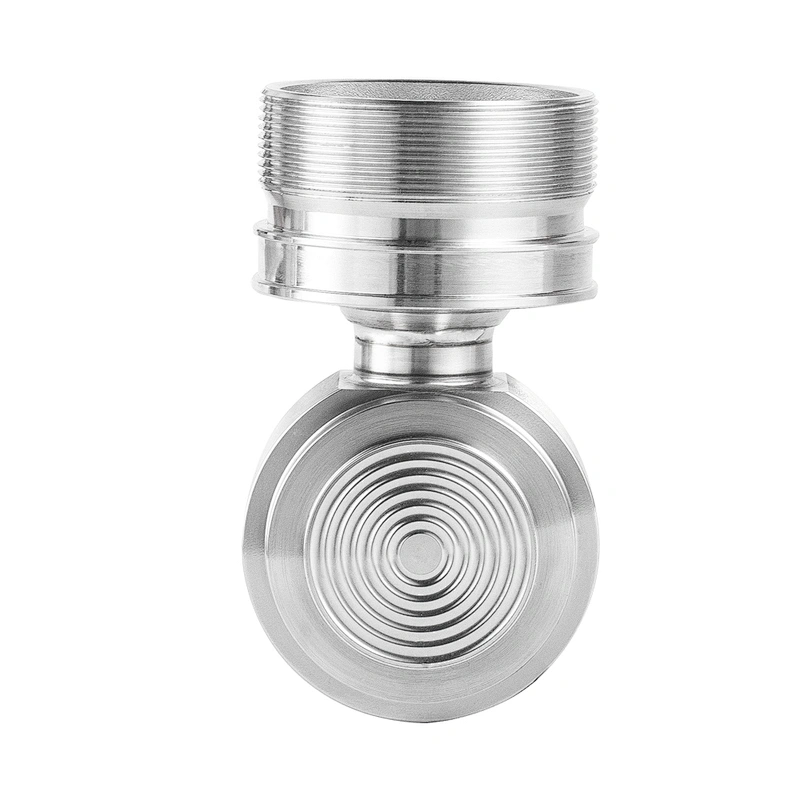

Monosilicon Pressure Sensor

The core sensor is high precision monosilicon technology with SP38D, it can be built-in static pressure and temperature compensation, which maximum improves the static pressure and temperature performance of the sensor. With high overload and high static pressure, high static pressure up to 40MPa. SP38D is suitable for all kinds of harsh environment, the working temperature is -40~85°C.
SP38D monosilicon differential pressure transmitter is widely used in process control, environmental control, flow control, hydraulic and pneumatic equipment, servo valve and transmission, chemical products and chemical industry as well as medical instrument and so on.


Features

• Differential pressure range: 0-30mbar...10bar
• Output voltage: 60～140mV(3kPa:50～120mV)
• Stability: ≤±0.1% FS/year
• Diaphragm material: SUS316L/ hastelloy C
• Mechanical connection for housing: M27×2(M), 2 3/16-16 UNS, M56×1.5(M)
• Power supply: 5V(typ),12V(max)
• Working temperature: -40℃~ +85℃
• Temperature effect on zero: ±0.05% F.S./℃
• Temperature effect on span: - 0.2±0.05% F.S./℃
• Long term drift: <±0.05% F.S./year
• Pressure hysteresis: <±0.05% F.S.
• Static pressure effect: <±0.1% /10MPa

Industry application

• Process control
• Environmental control
• Flow control
• Hydraulic and pneumatic equipment
