Submersible Level Transmitter
Submersible Level Transmitter
Submersible Level Transmitter
Submersible Level Transmitter
Submersible Level Transmitter

Submersible Level Transmitter

Model NO.
LMP633-NCN
Minimum order quantity
1 set
Stock Time
10 Days
Quantity:

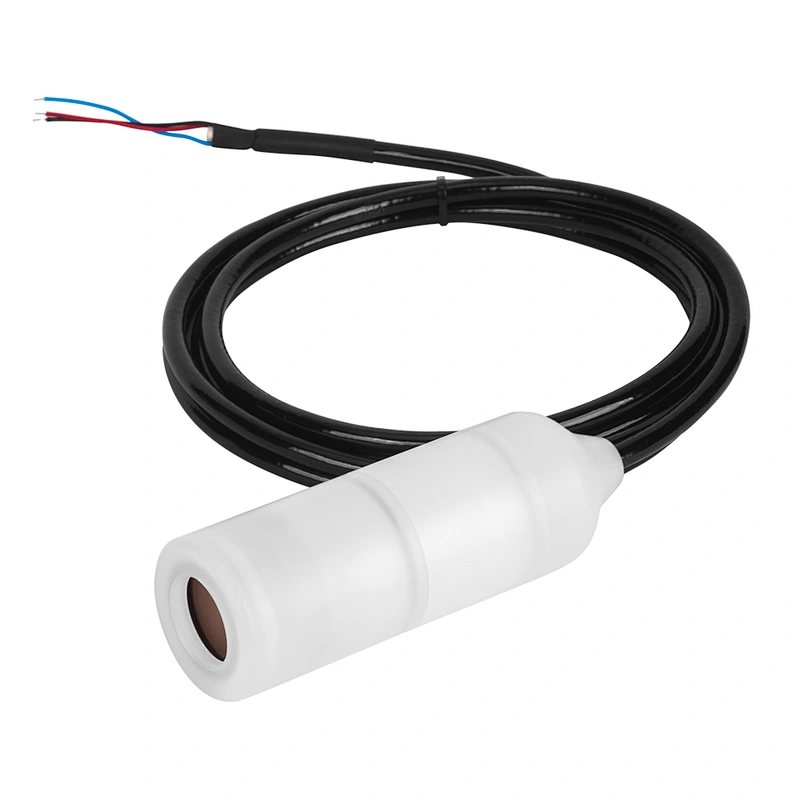

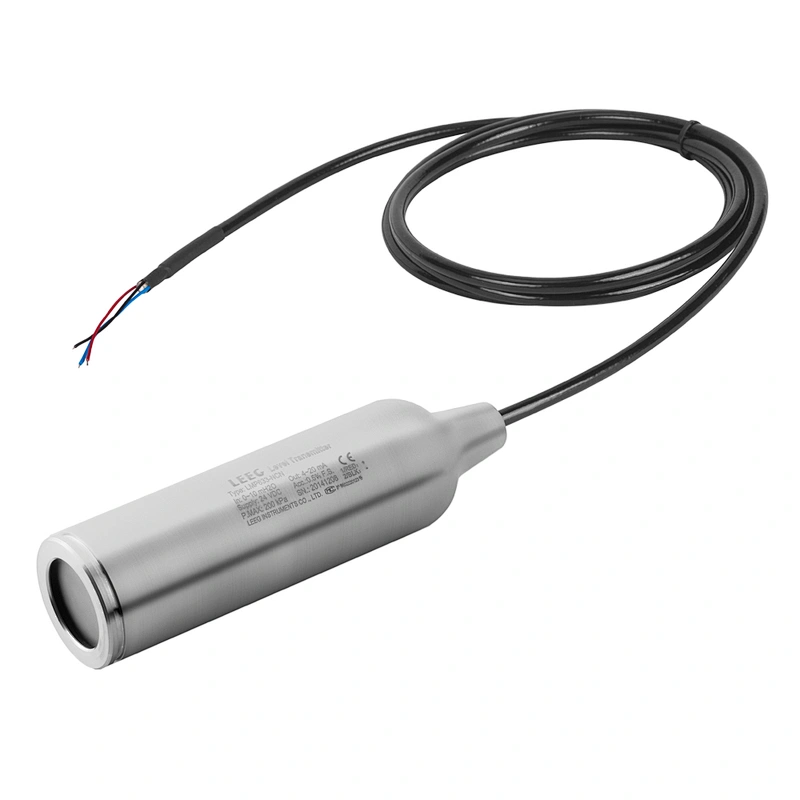

LMP633 Submersible level transmitter is designed for dealing with the most severe demanding level measurement conditions. It is the optimal choice to satisfy all of high demand level measuring applications.


Features


• Measuring range: 1 mH2O - 200 mH2O
• Output signal: 4-20mA, 4-20mA+HART, 0.5-4.5VDC, Modbus-RTU/RS485, others
• Reference accuracy: ± 0.2% URL, ± 0.5% URL
• Stability: ±0.2% URL/ year
• Sensor type: Capacitive ceramic pressure sensor
• Sensor seal: O-ring, FKM
• Housing material: PP, PVDF, SUS316
• Media temperature: -10~ 70℃
• Measuring medium: Water, waste water, oil
• Approvals: CE & Ex-proof certificate


Industry application


• Sewage treatment
• Level measurement in open tanks with aggressive liquids as acids and lye


Download


• Data sheet
• Operation manual
• CE certificate
• RoHS certificate
• Intrinsic safety certificate
