Model NO.
LMP633-NSN-S
Minimum order quantity
1 set
Stock Time
10 Days
Quantity:

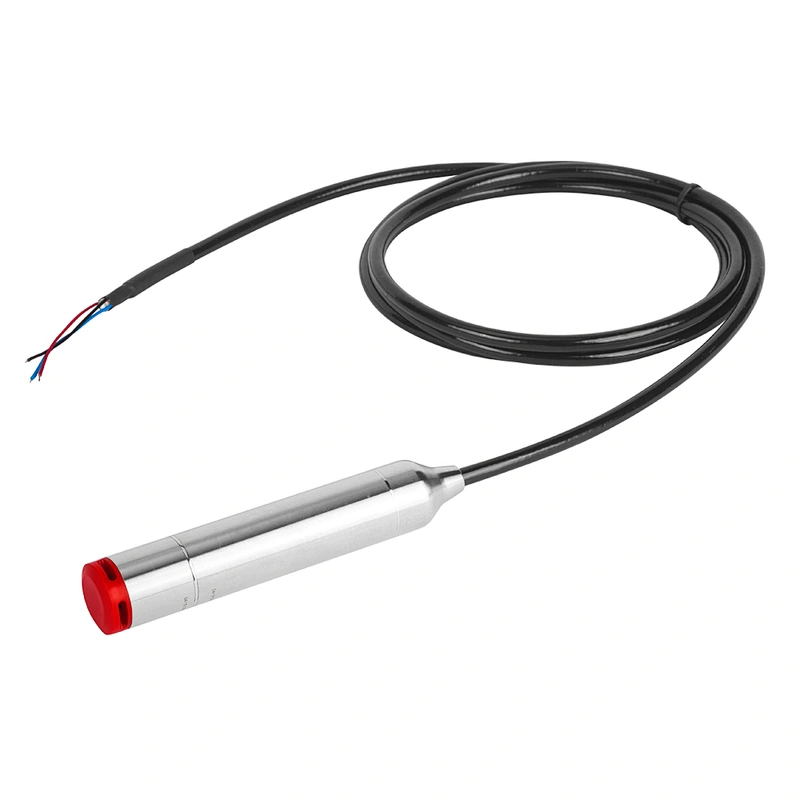

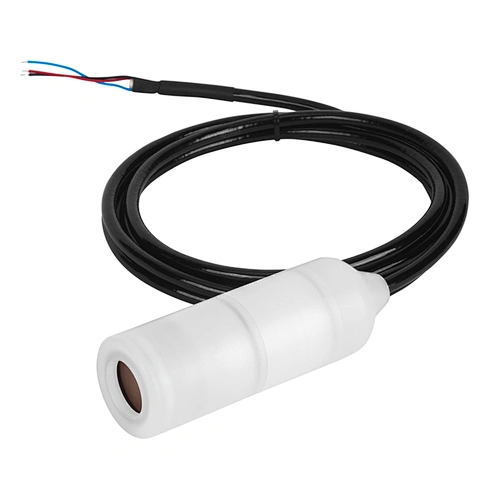

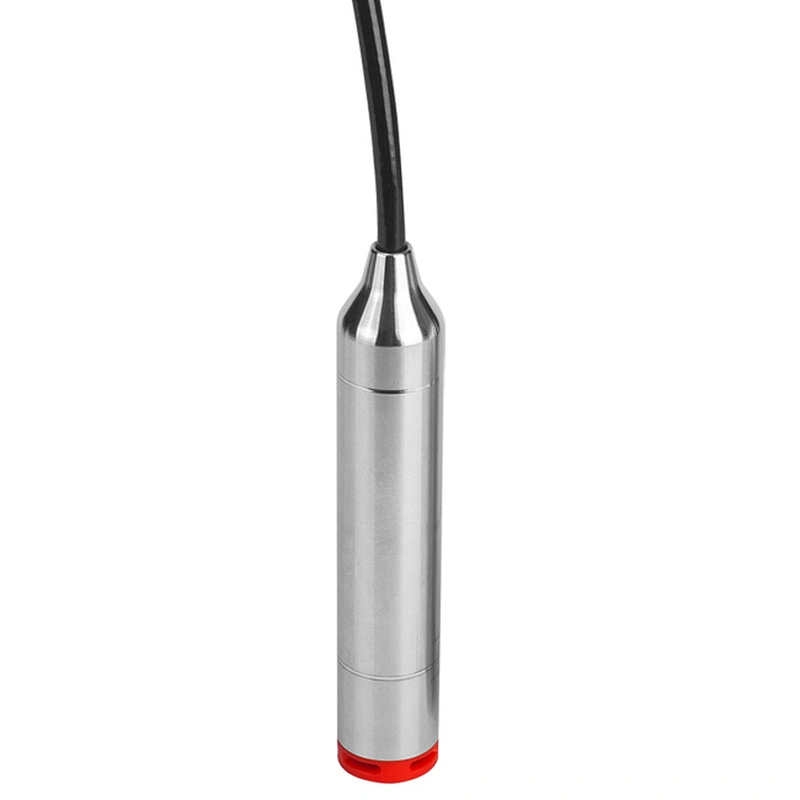

LMP633 Submersible level transmitter is designed for dealing with the most severe demanding level measurement conditions. It is the optimal choice to satisfy all of high demand level measuring applications.


Features


• Measuring range: 0.5mH2O - 200mH2O
• Output signal: 4-20mA, 4-20mA+HART, 0.5-4.5VDC, Modbus-RTU/RS485, others
• Reference accuracy: ±0.1% URL, ±0.5% URL
• Media temperature: -10~ 70℃
• Sensor type: Piezoresistive silicon pressure sensor
• Diaphragm: Stainless steel SUS316
• Sensor seal: O-ring(FKM), stainless steel welding


Industry application


• Depth or level measurement in wells and open waters
• Ground water level measurement


Download


• Data sheet
• Operation manual
• CE certificate
• RoHS certificate
• Intrinsic safety certificate
