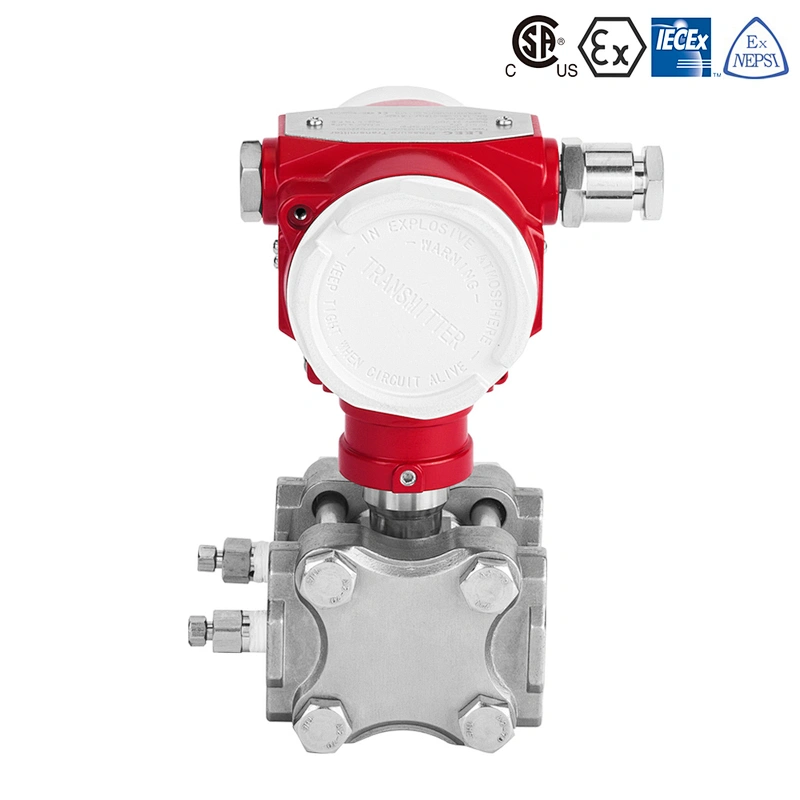

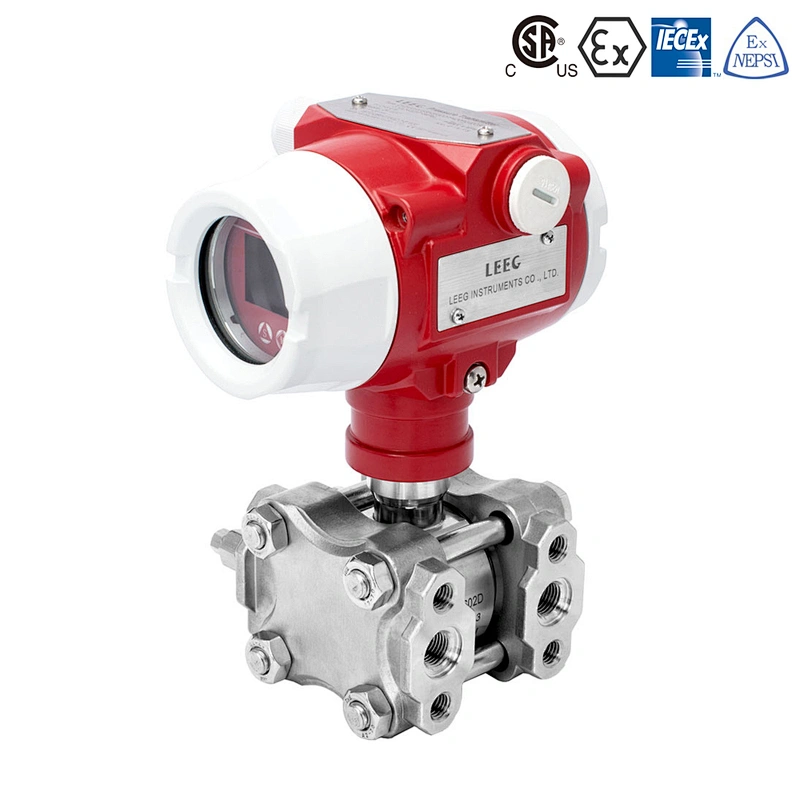

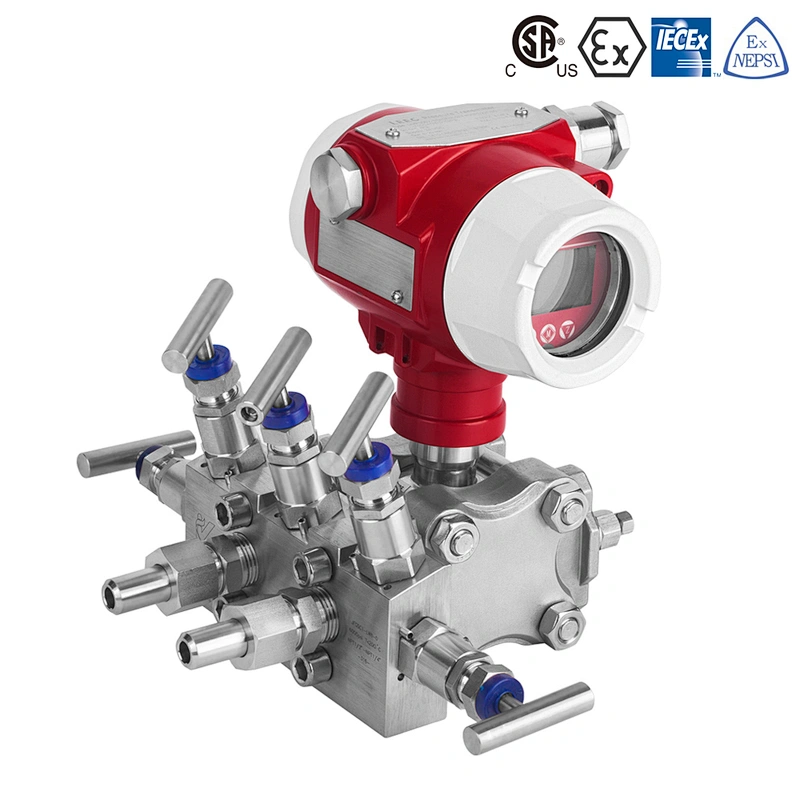

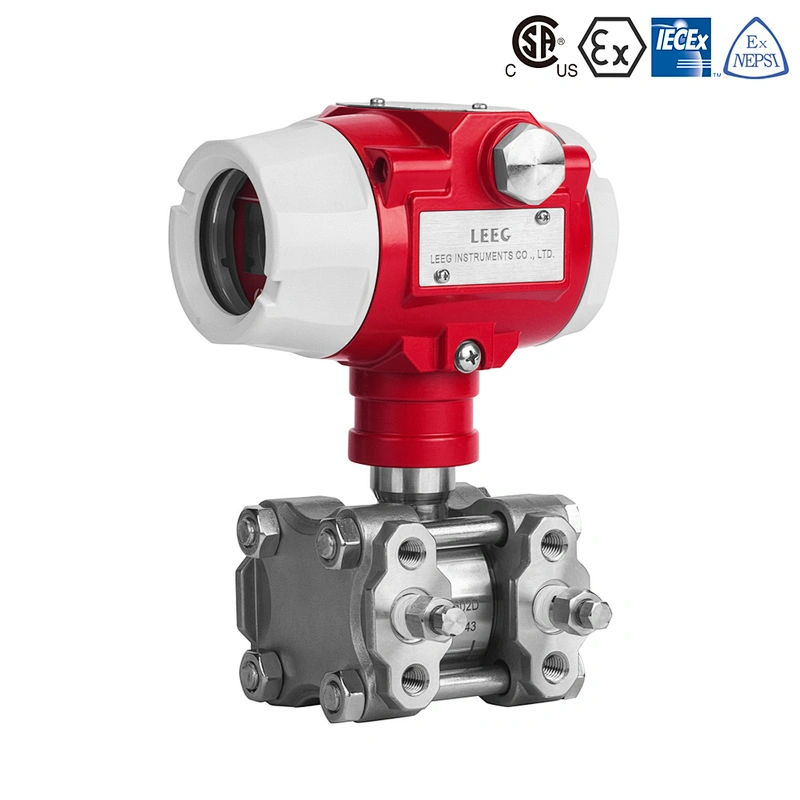

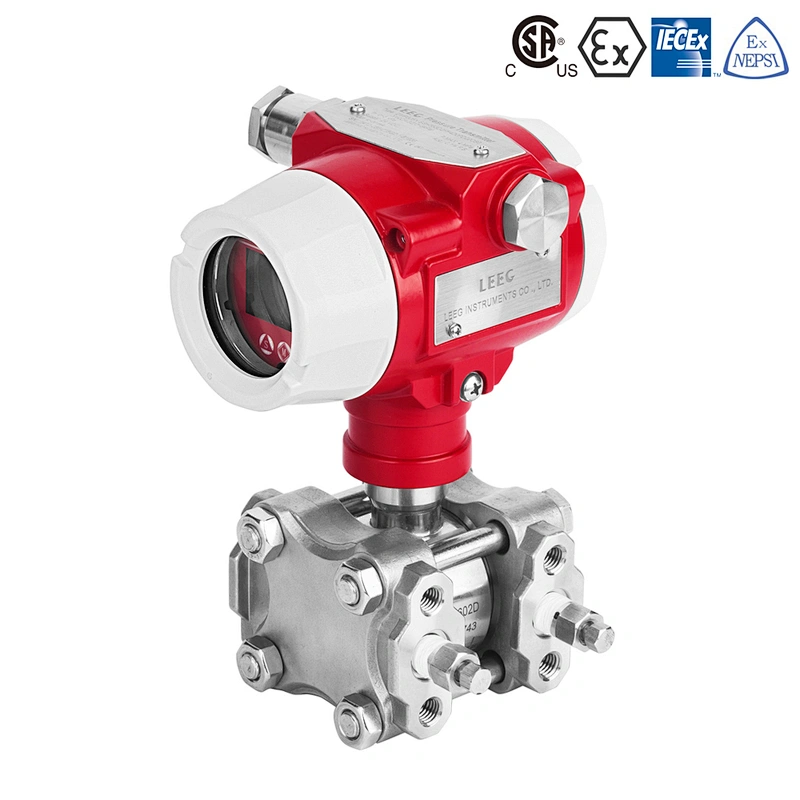

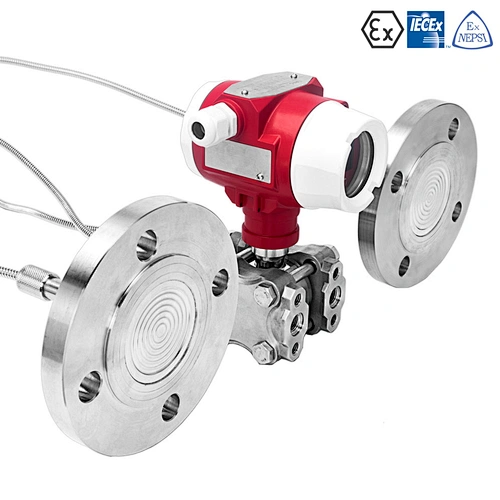

Differential Pressure Transmitter

DMP305X Monosilicon pressure transmitter is a high performance pressure transmitter with international leading technology meticulously designed by LEEG instrument, using the world's most advanced sensor technology and patent encapsulation technology. The sensor locates on the top of the metal body and stay away from the medium interface to realizes mechanical isolation and thermal isolation. Glass sintering sensor wire realizes high strength electrical insulation of metal base and improves the capability of flexibility of electronic circuit and transient voltage resistance protection.

Features

• Measuring range: 200Pa-10MPa
• Output signal: 4-20mA, 4~20mA/HART, customer
• Reference accuracy: ±0.075% URL, optional ±0.05% URL
• Media temperature: -40-120℃
• Measuring medium: Liquid, gas, or steam flow as well as liquid level, density and pressure
• Media temperature: -40-120℃
• Power supply: 4~20mA two wire, power supply: 10.5-55vdc 4~20mA+HART two wire, power supply: 16.5-55vdc
• Diaphragm material: SUS316L, Hastelloy C
• Process connection: M20*1.5(M), 1/2-14NPT(F), 1/4-18NPT(F)
• Protection class: IP67
• Approvals: CSA, ATEX, IECEx, NEPSI, RoHS, CE


Industry application

• Process control system
• Petroleum industry
• Chemical industry
