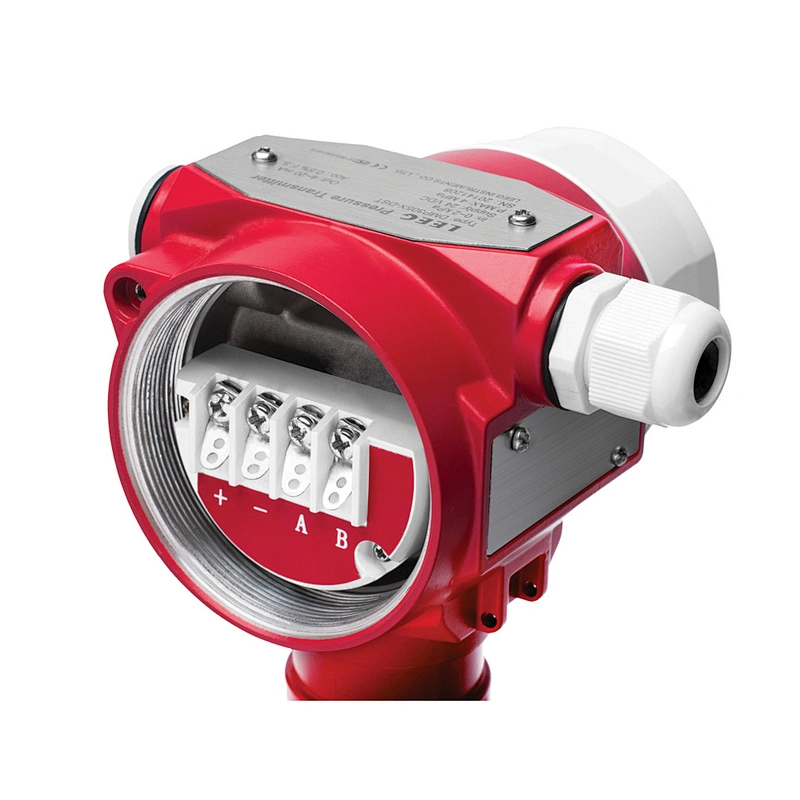

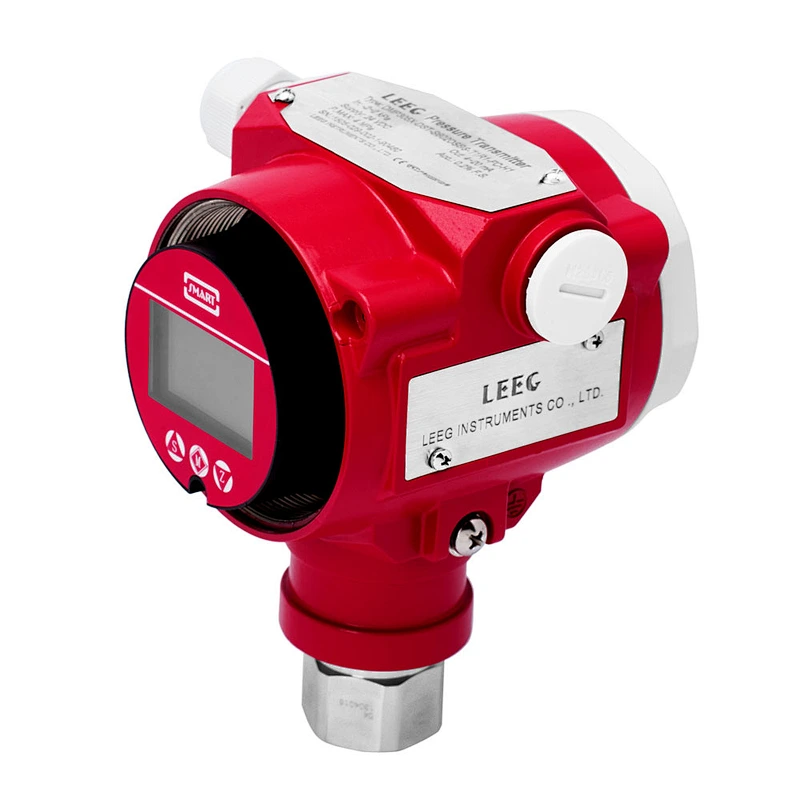

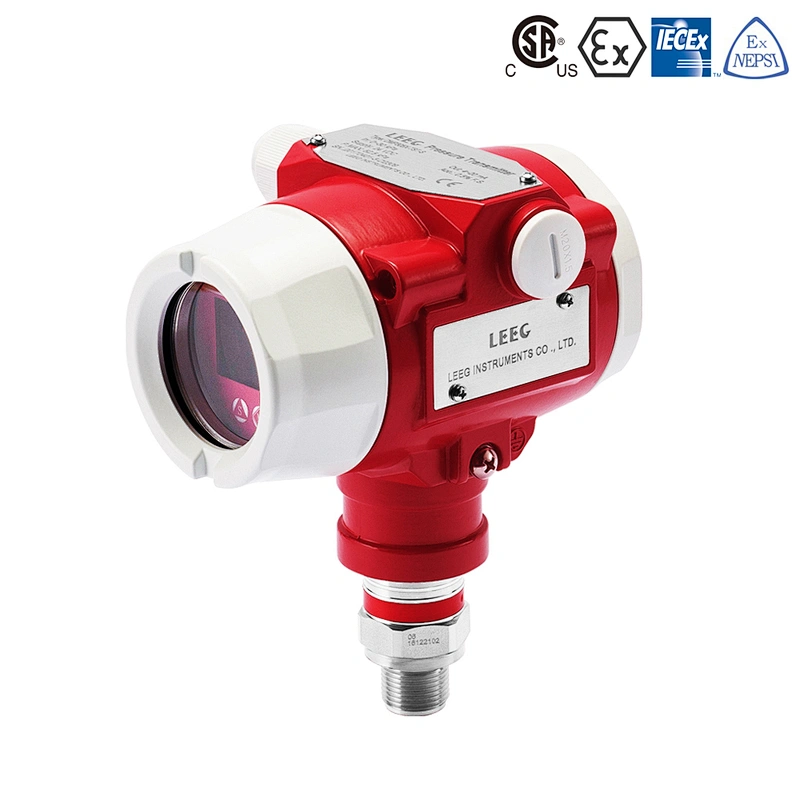

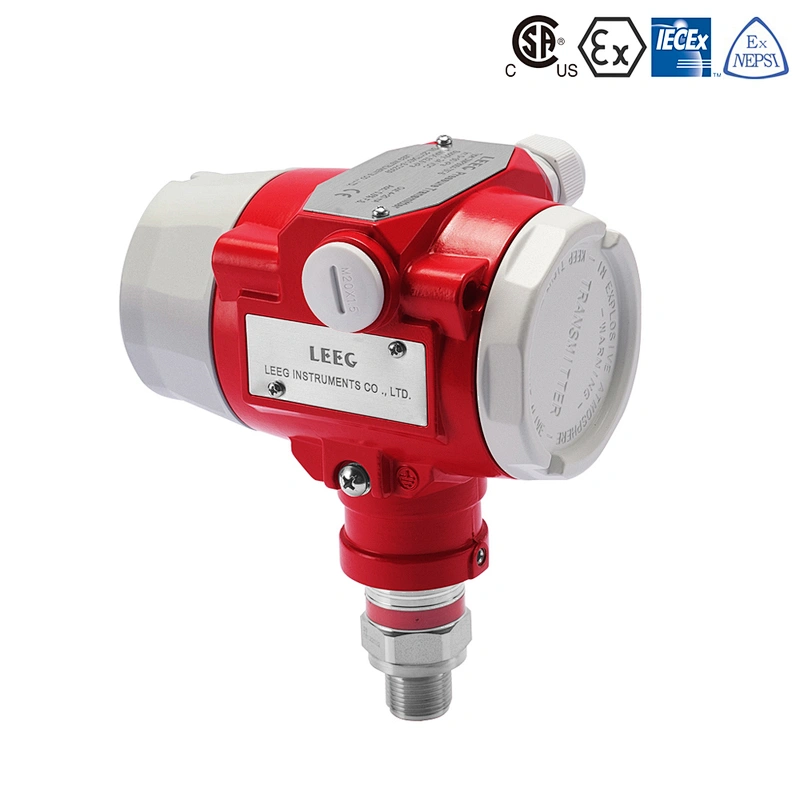

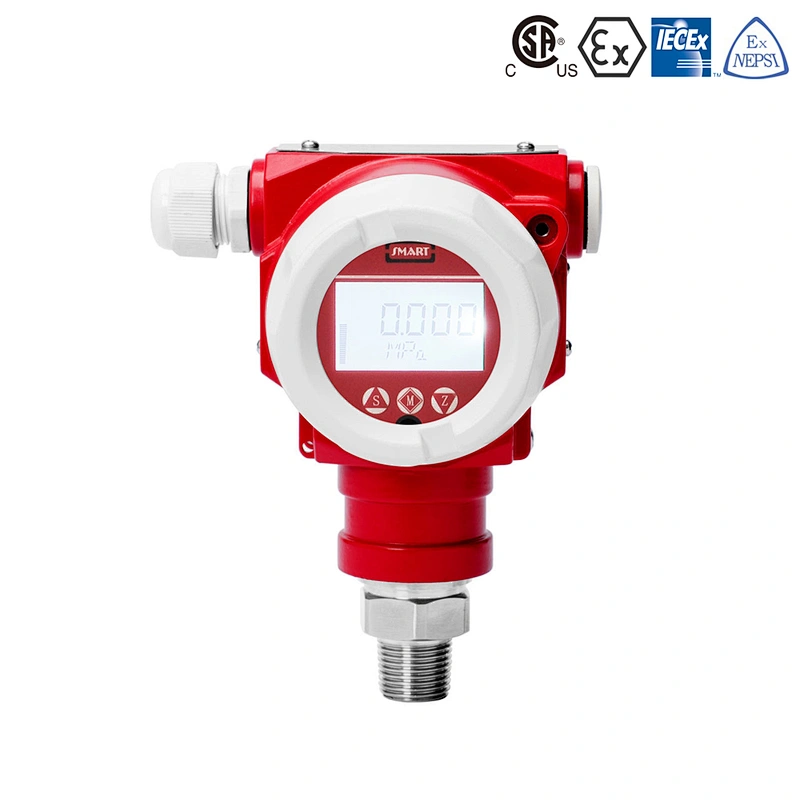

Gauge Pressure Transmitter

DMP305X-TLT gauge pressure transmitter is a high performance pressure transmitter with international leading technology meticulously designed by LEEG instrument. The new external three-button menufunction designs make it easier to operate the parameter settings and safer to operate in dangerous situations. The HART manual controller or the HART software can realize measurement information configuration remotely.

Features

• Measuring range: 5kPa-100MPa
• Output signal: 4-20mA, 4-20mA+HART, customer
• Reference accuracy: ±0.2% URL, ±0.5% URL
• Process connection: M20*1.5(M), G1/2(M), G1/4 (M), 1/2-14NPT(M)

• Measuring medium: Liquid, gas, or steam

• Approvals: CSA, ATEX, IECEx, NEPSI, RoHS, CE

Industry application

• Process control system
• Petroleum industry
• Chemical industry


Download

• Data sheet

• Operation manual

• Manual of LCD keys

• ATEX certificate

• IECEx certificate

• CSA certificate

• Flame proof certificate - NEPSI

• Intrinsic safety certificate - NEPSI

• CE certificate

• RoHS certificate
