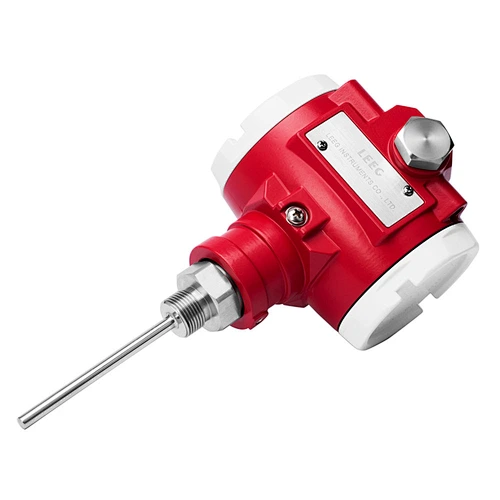

Integrated Temperature Transmitter

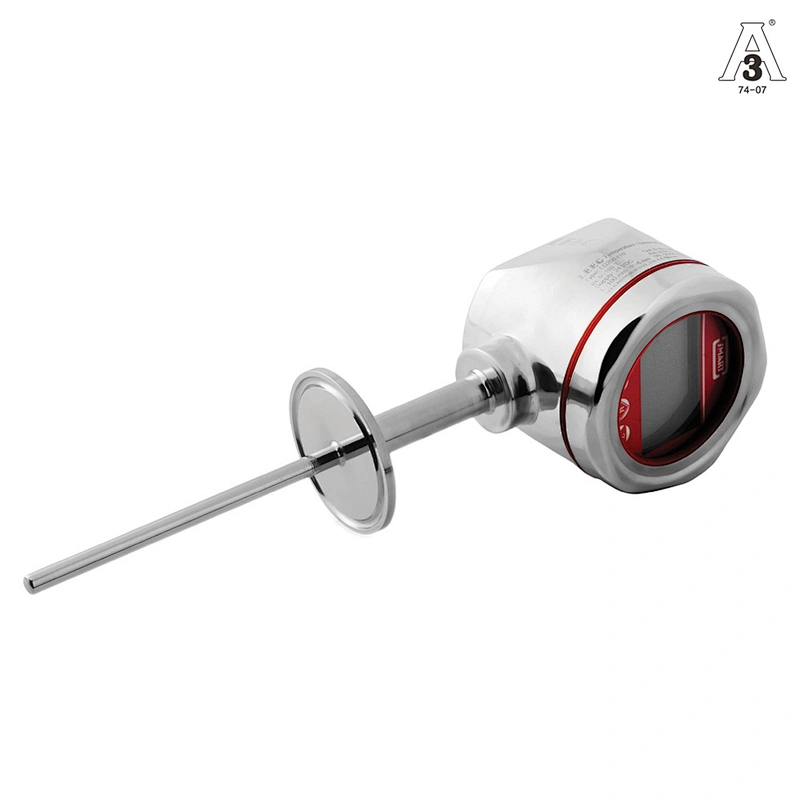

LG200-FRF integrated temperature transmitter adopts ASIC & SMT signal transmitting module, optional built-in backlight and button operation LCD display module.The integrated transient voltage terminal satisfy 4 grade standard (difference-mode voltage 2000V, common-mode voltage 4000V), suitable for bad surge voltage occasions.LG200-FRF sanitary temperature transmitter is designed for food and pharmaceutical industry, suitable for CIP/SIP cleaning and sterilization. The wetted parts are made of high quality stainless steel 316L. Roughness≤0.4um, variety of international standard process connections are available .


Features

• Measuring range: -50 - 400℃
• Output signal: 4-20mA
• Reference accuracy: ±0.5% URL
• Stability: superior to ±0.05% URL or 0.1℃/year
• Electrical connection: Stainless steel termimal, aviation plug M12*1 (4 pins) (H2), IP67
• Outer diameter: 6mm, 8mm, 10mm, 12mm, 14mm
• Process connection: M20*1.5(M), G1/2(M), 1/2- 14NPT(M), Tri-Clamp 1-1/2", Tri-Clamp 2", Flange...
• Approvals: CE


Industry application

• Equipment supporting
• Medical devices, pharmacy equipment
• Food, drink
