Gauge Pressure Transmitter
Gauge Pressure Transmitter
Gauge Pressure Transmitter
Gauge Pressure Transmitter
Gauge Pressure Transmitter

Gauge Pressure Transmitter

Model NO.
SMP131-TSD-S
Minimum order quantity
1 set
Quantity:

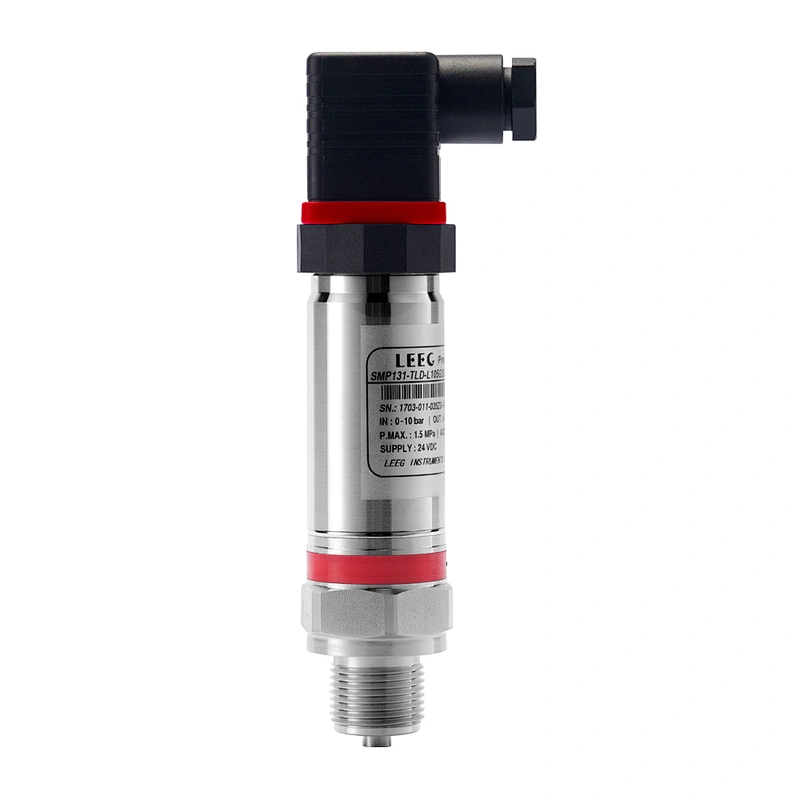

SMP131 compact pressure transmitter combined with all the latest available technologies of the modern electronic pressure measurement fields. It’s the most cost-effective products after 10 year’s research and development. The sensor adopts full-automatic linear and temperature compensation technology to ensure the efficiency and quality of mass production. Fully-sealed and isolated air cavity design to ensure the long term reliability. Signal transmitting module adopts original calibration technology to realize parameters setting easily without any tools.


Features


• Measuring range: 2kPa-40MPa
• Output signal: 4-20mA, 4-20mA+HART, 0-5VDC, Modbus-RTU/RS485, others
• Reference accuracy: ±0.1% URL, optional ±0.075% URL
• Process connection: M20*1.5(M), G1/2(M), G1/4 (M), 1/2-14NPT(M)
• Measuring medium: Liquid, gas, or steam
• Media temperature: -30-80℃
• Electrical connection: DIN43650, IP65; M12*1(4 pins), IP67


Industry application


• Process control system
• Machine building


Download


• Data sheet
• Operation manual
• CE certificate
• RoHS certificate
• Intrinsic safety certificate
• Flame proof certificate
