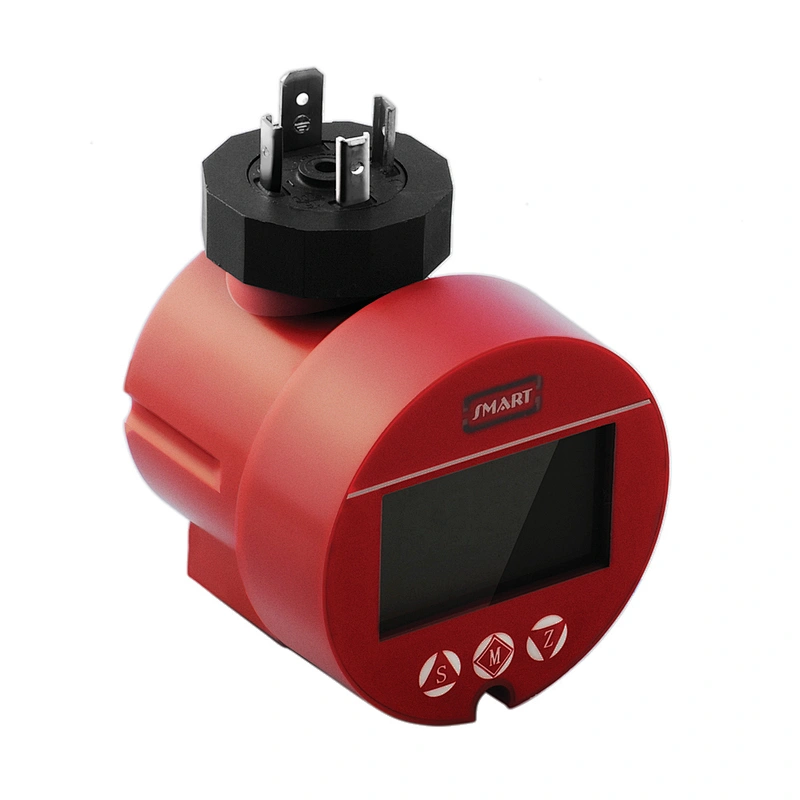

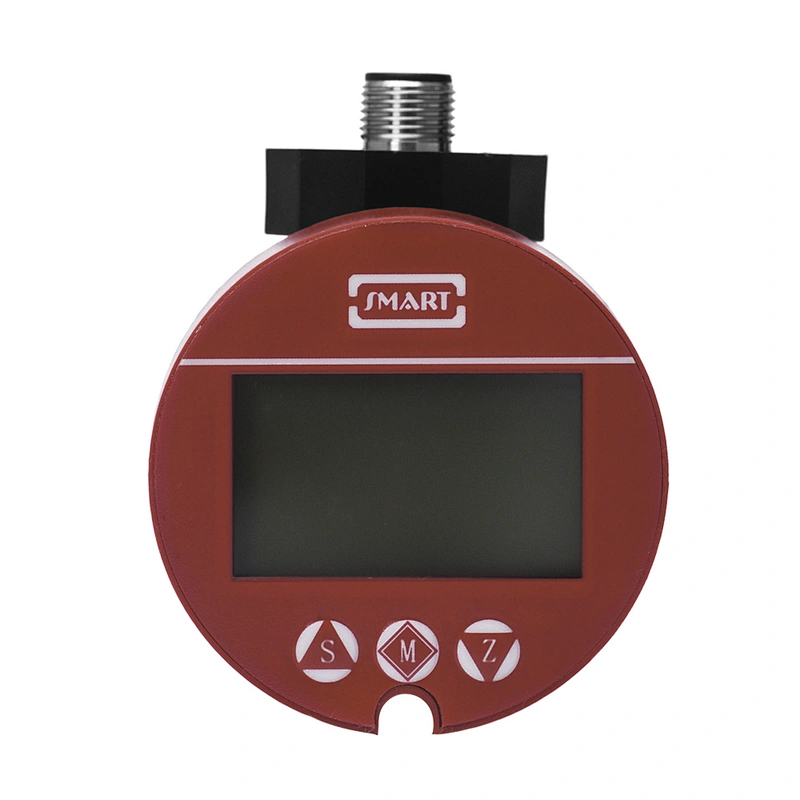

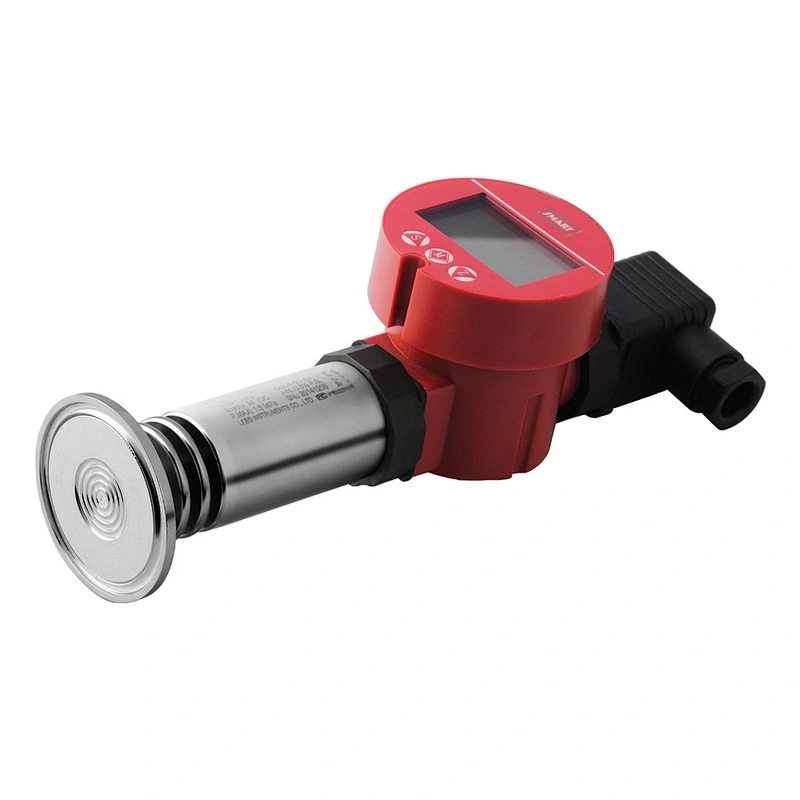

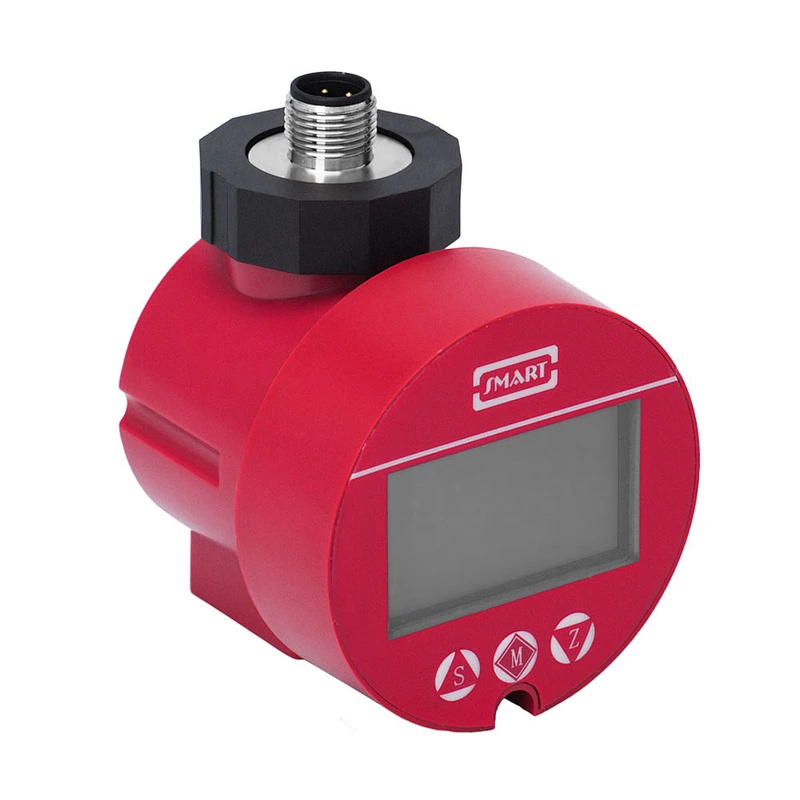

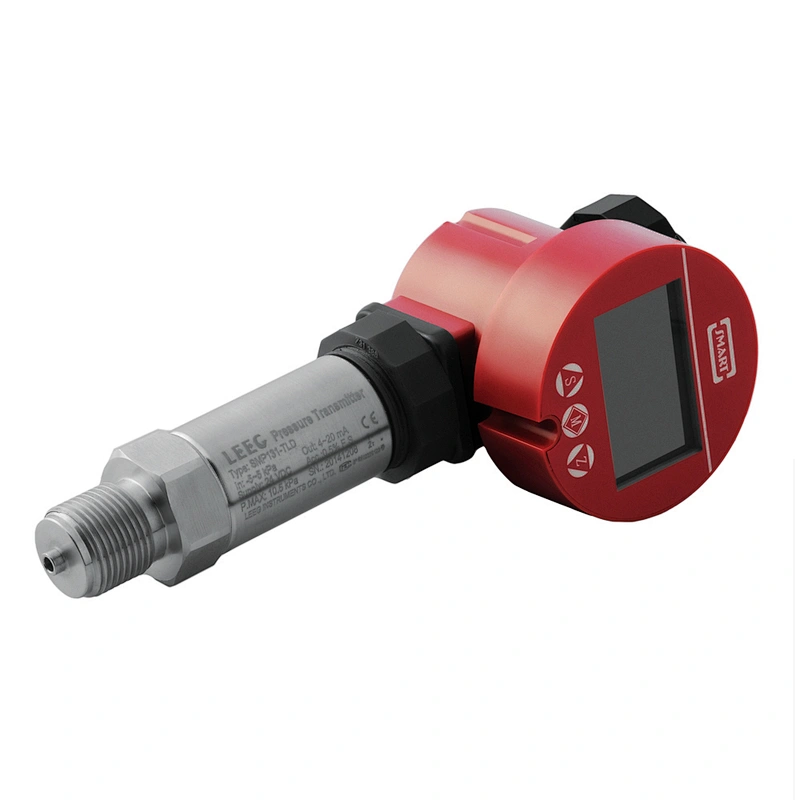

Field Display Instrument
Field Display Instrument
Field Display Instrument
Field Display Instrument
Field Display Instrument
Field Display Instrument
Field Display Instrument
Field Display Instrument
Field Display Instrument
Field Display Instrument
Field Display Instrument

Field Display Instrument

Model NO.
LCD11
Minimum order quantity
1 set
Stock Time
10 Days
Quantity:

24 Bit ADC MCU inside. Customer can use three buttons instead of the potentiometer, to program the zero point, span, decimal point, damping and alarm point etc.


Features


• Power supply: 4-20mA two loop power supply, max perssure drop 8VDC
• Output signal: 4-20mA two wire signal loop output for option
• Site operation: 3 buttons, all parameters can be modified at site
• Warranty: 12 months under normal use Display parameters
• Accuracy class: ±0.1%F.S., ±1 bit
• ADC sampling: 24 bits
• Housing material: ABS+PC
• Rotation angle: 350°, convenient to observe
• Environmental temperature: -20-70℃
• Storage temperature: -20-70℃
• Humidity limit: 5-85%RH, no outer protection


Industry application


• Process variable
• 4-20mA current value or percentage site display


Download


• Data sheet
• CE certificate
