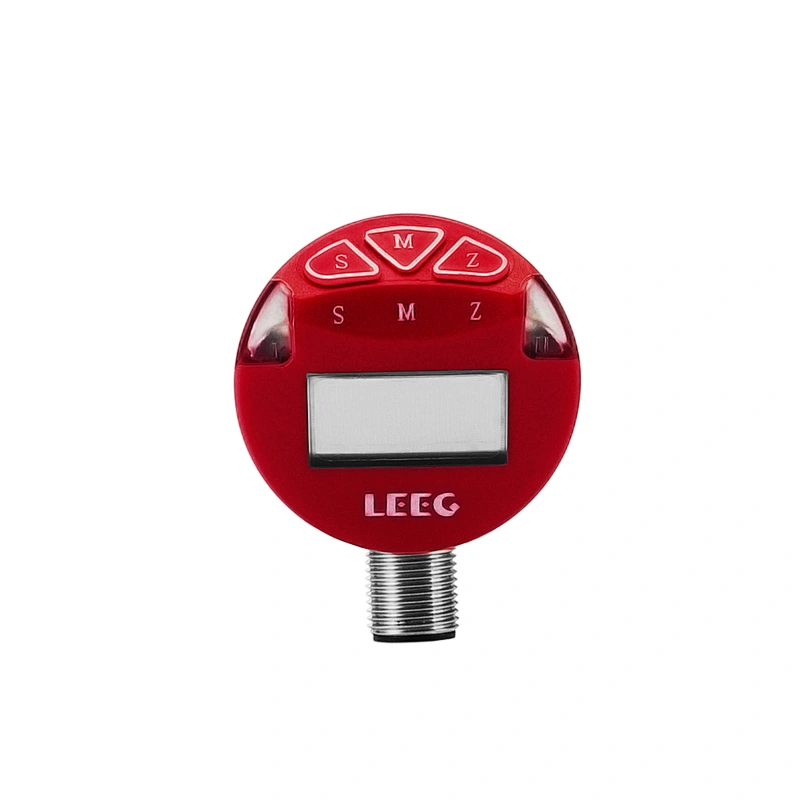

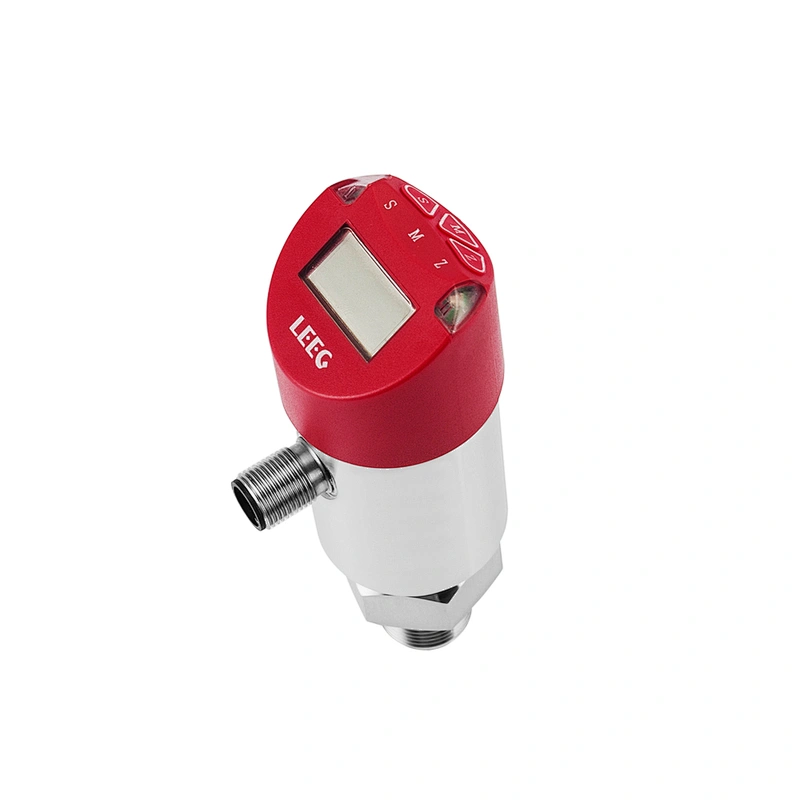

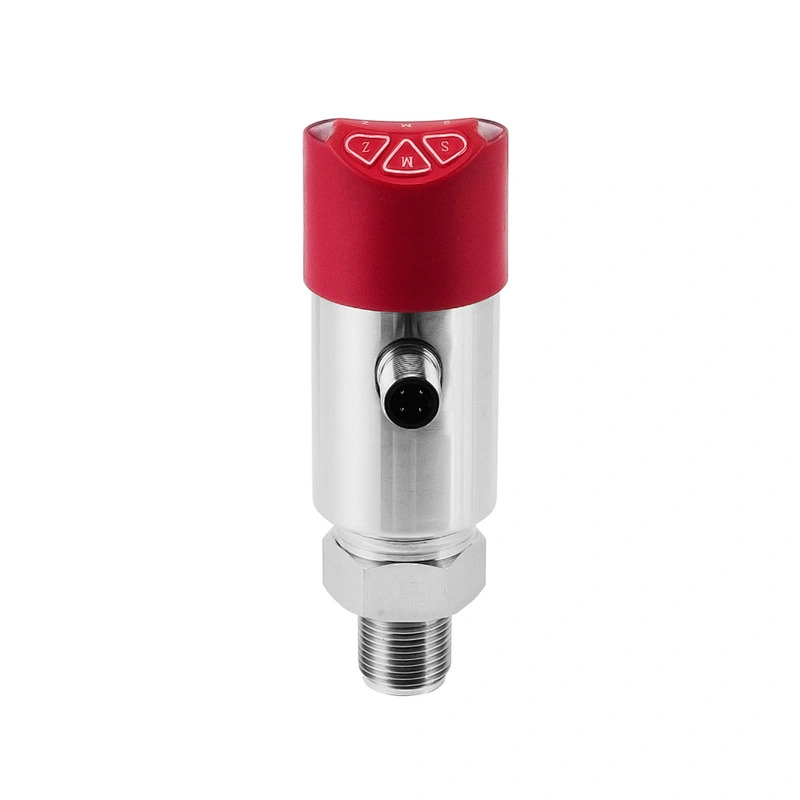

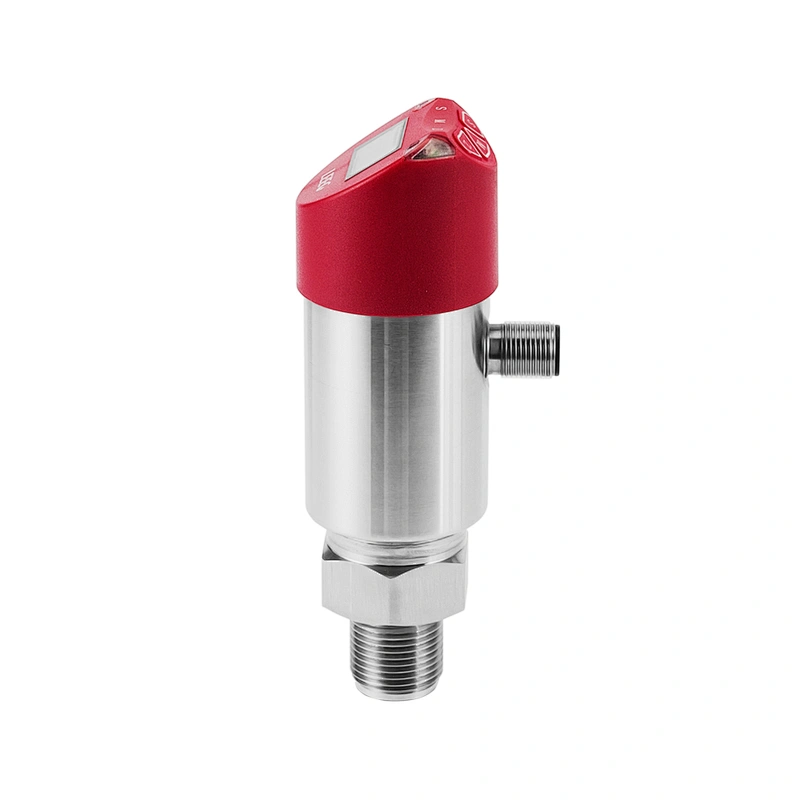

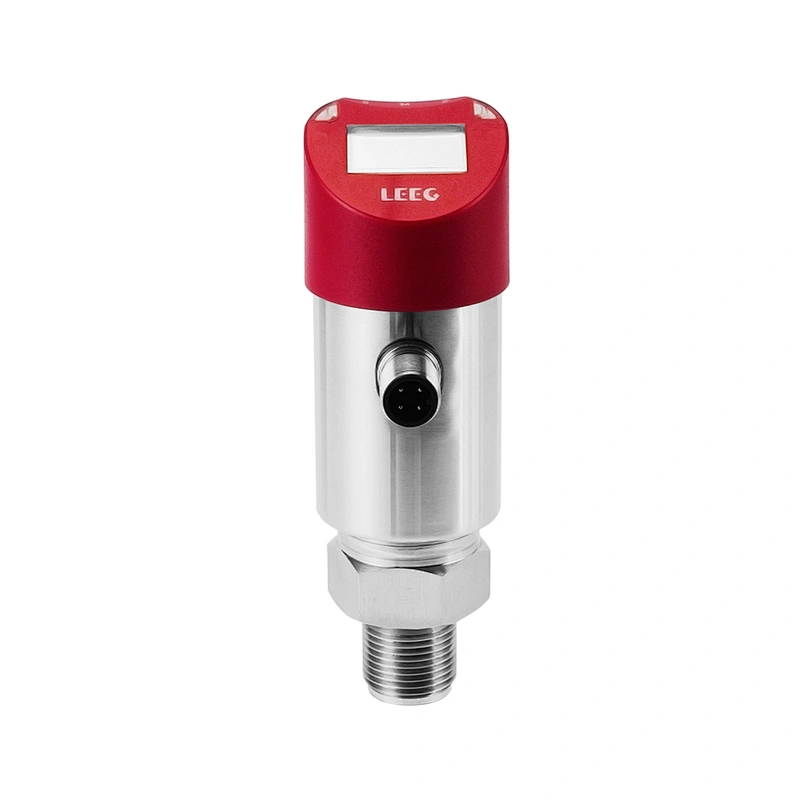

Electronic Pressure Switch

PS131 electronic pressure switch fully upholds the design concept that to meet the worst application occasions, adopts monosilicon sensor technology and integrated housing craft, with excellent performance.
5 dot-matrix OLED display mode shows rich menu contents and achieves the best visual effects. 3 button parameters setting to realize a good man-machine operation interface and rich functional adjustment. Independent air cavity structure effectively insulates gas-guiding side and electronic cavity so as to avoid effects of humidity. To maximum the usage of different industrial applications, high overload, anti- condensation, high precision and other demanding functions are optional accordingly.


Features

• Pressure types: gauge pressure
• Measuring range: 2kPa-40MPa
• Output signal: 4-20mA, 1-5VDC, Modbus- RTU/RS485,PNP or NPN output, customer
• Reference accuracy: 0.1% URL
• Stability: ±0.2% URL/ 5 years
• Media temperature: -40-120℃
• Process connection: Standard G1/4(M), G1/2(M), M20*1.5(M), optional
• Electrical connection: Aviation plug, M12*1 (5 pins)


Industry application

• Pressure & Level measurement
